R tutorial

subcortexVisualizationR is an open-source R package for programmatically visualizing region-level data across twelve popular atlases for the subcortex (including thalamic nuclei and the brainstem) and cerebellum. Visualizations are rendered as resolution-independent two-dimensional vector graphics, inspired by the ggseg R package for cortical data, with standardized rendering conventions that make results directly comparable across atlases.

This tutorial covers the core functionality of the package:

  1. Exploring the built-in atlases: Viewing the twelve included atlases with default and custom colormaps
  2. Choosing view angles: Displaying medial, lateral, superior, and inferior views
  3. Controlling transparency: Global alpha and significance-based transparency
  4. Working with your own data: Formatting and plotting empirical region-level data
  5. Extracting regional statistics from volumetric data: Using parcel_segstats to parcellate NIfTI images

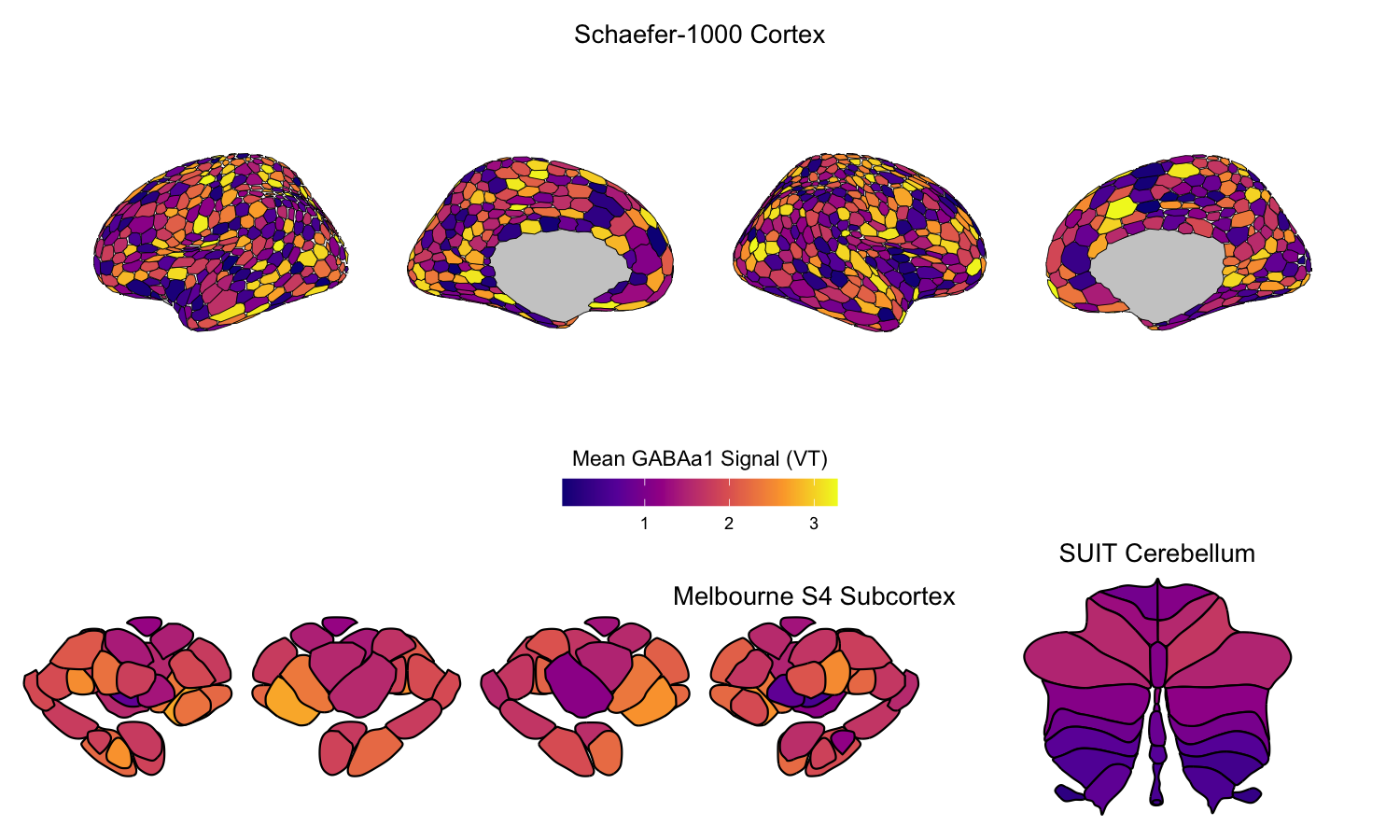

  6. Combining cortical and subcortical visualizations: Integrating with ggseg for whole-brain figures

An equivalent Python package, subcortex_visualization, provides the same functionality and atlases with a nearly identical interface.

Load required packages

The following libraries are needed to create the specific visual styles that are included in this tutorial.

library(cowplot)
library(glue)
library(grid)
library(patchwork)
library(subcortexVisualizationR)
library(tidyverse)

theme_set(theme_cowplot())

1. Exploring the built-in atlases

The package includes twelve pre-vectorized subcortical and cerebellar atlases that serve as scaffolds for visualizing region-level summary statistics:

Atlas Regions
aseg_subcortex FreeSurfer aseg: accumbens, amygdala, caudate, hippocampus, pallidum, putamen, thalamus
Melbourne_S1 through Melbourne_S4 Melbourne Subcortex Atlas at four resolutions (8-27 subcortical regions per hemisphere)
AICHA_subcortex AICHA subcortical atlas (20 regions per hemisphere)
Brainnetome_subcortex Brainnetome subcortical atlas (18 regions per hemisphere)
CIT168_subcortex CIT168 reinforcement learning atlas (14 regions per hemisphere)
Thalamus_HCP HCP-based thalamic nuclei (7 nuclei per hemisphere)
Thalamus_THOMAS THOMAS thalamic nuclei atlas (11 nuclei per hemisphere)
Brainstem_Navigator Brainstem Navigator atlas (29 bilateral regions per hemisphere + 8 midline regions)
SUIT_cerebellar_lobule SUIT cerebellar lobule atlas (17 unique regions; 10 per hemisphere, 7 midline vermis regions)

plot_subcortical_data

The central function is plot_subcortical_data. With default parameters, it plots one color per region using the viridis colormap for the left hemisphere of the aseg subcortex atlas. More information about function arguments can be found in the API reference for Python and R.

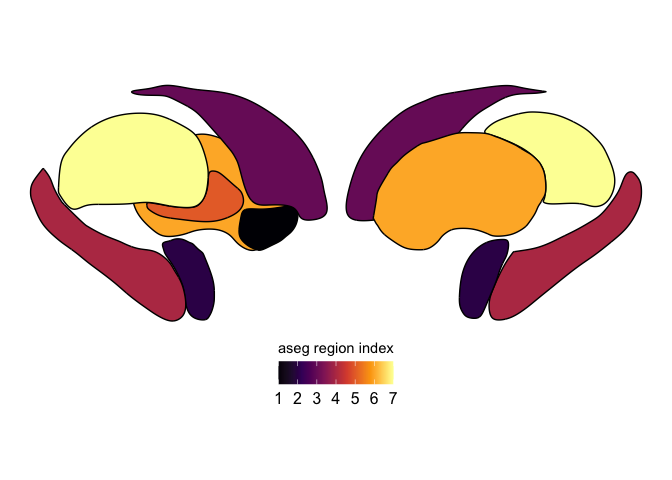

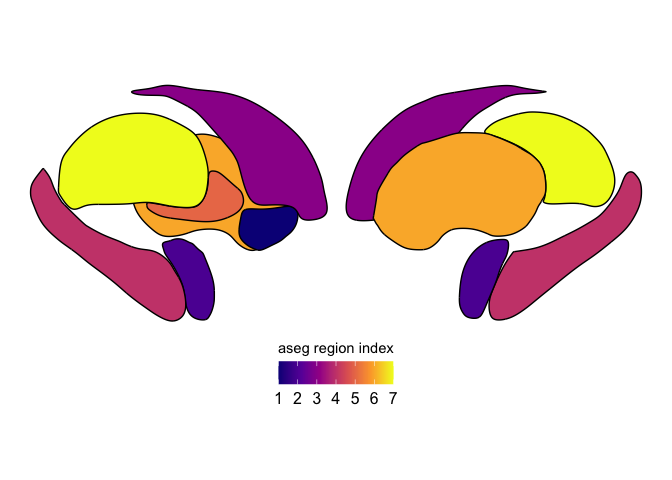

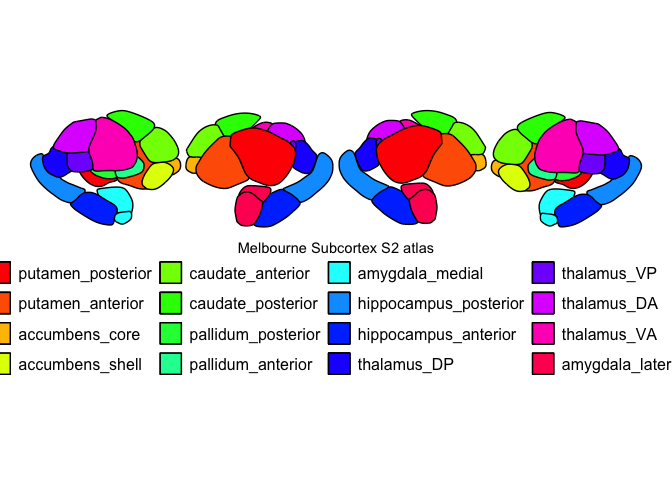

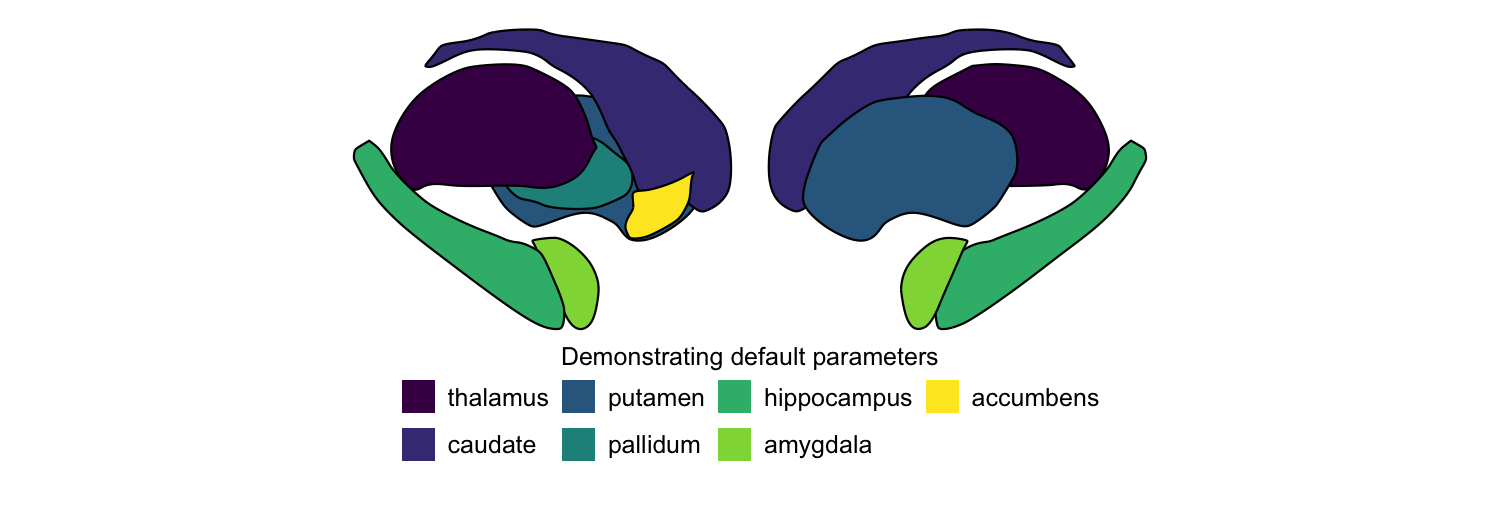

plot_subcortical_data(fill_title = "Demonstrating default parameters",
                      show_legend = TRUE)

We can easily swap out the atlas for any of the other eleven. Here we plot the AICHA subcortex atlas with the plasma colormap and the Brainnetome subcortex atlas with the Spectral colormap, both for both hemispheres:

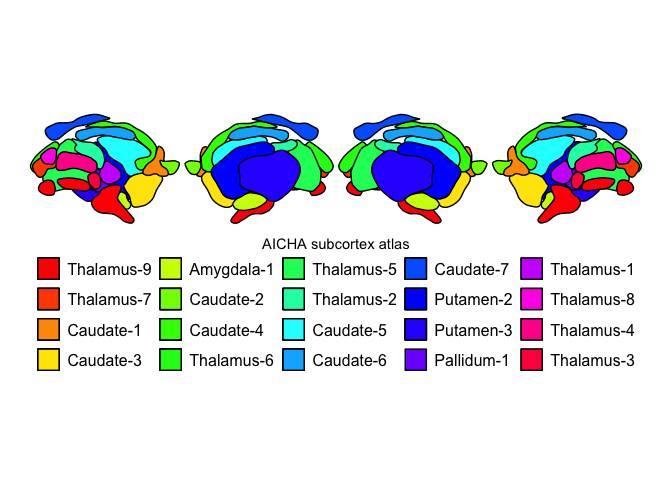

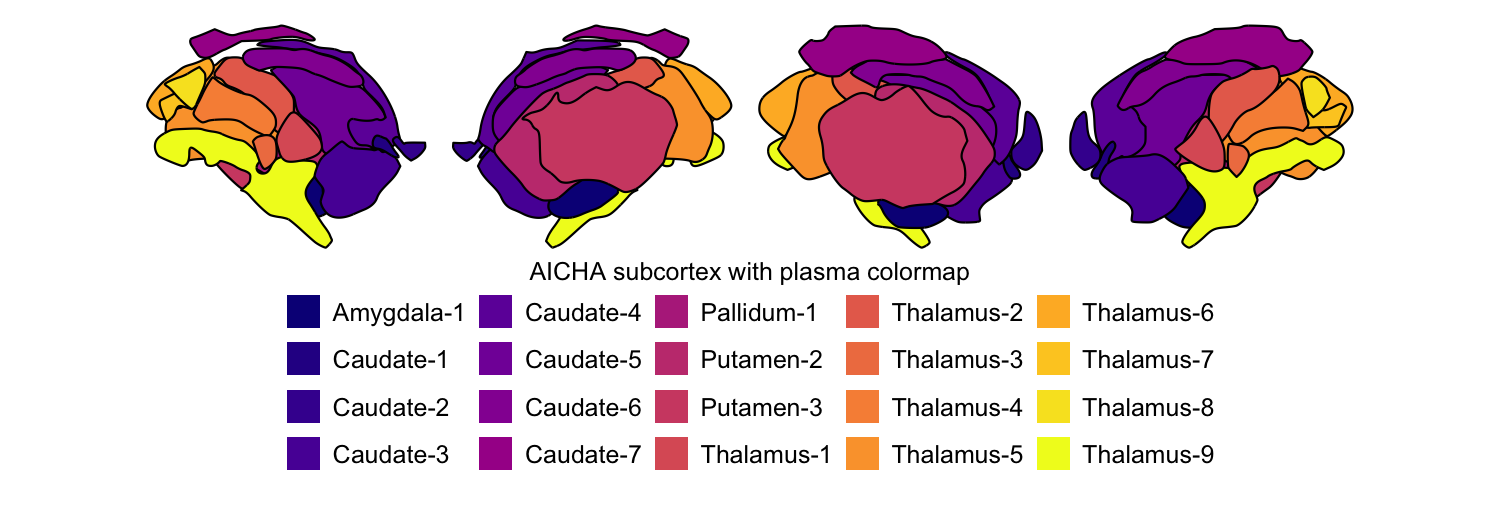

# A. AICHA subcortex atlas, plasma colormap
plot_subcortical_data(atlas = "AICHA_subcortex", cmap = "plasma", hemisphere = 'both',
                      fill_title = "AICHA subcortex with plasma colormap")

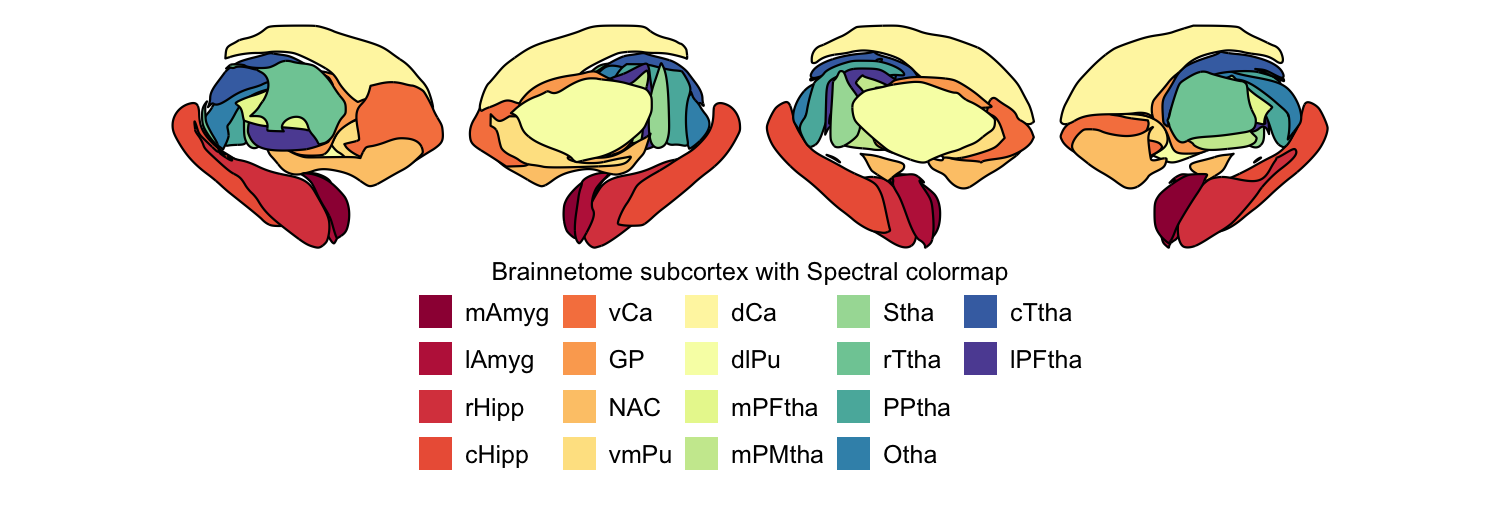

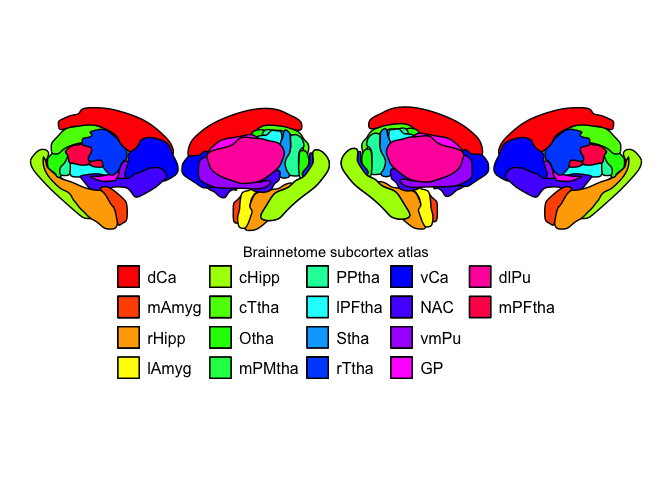

# B. Brainnetome subcortex atlas, Spectral colormap
rainbow_cmap <- colorRampPalette(RColorBrewer::brewer.pal(11, 'Spectral'))
plot_subcortical_data(atlas = "Brainnetome_subcortex", cmap = rainbow_cmap, hemisphere = 'both',
                      fill_title = "Brainnetome subcortex with Spectral colormap")

2. Choosing view angles

For each atlas, medial, lateral, superior, and inferior views are available for both hemispheres, either separately or combined. By default, plot_subcortical_data shows medial and lateral views. You can specify any combination with the views argument.

The one exception is the SUIT cerebellar lobule atlas, which is based on a two-dimensional flatmap representation of the cerebellum and is not designed to be shown in three-dimensional views.

Here we demonstrate all four views with the THOMAS thalamic nuclei atlas and the Brainstem Navigator atlas:

# A. THOMAS thalamic nuclei atlas
THOMAS_cmap <- colorRampPalette(c("white", "#d14662"))

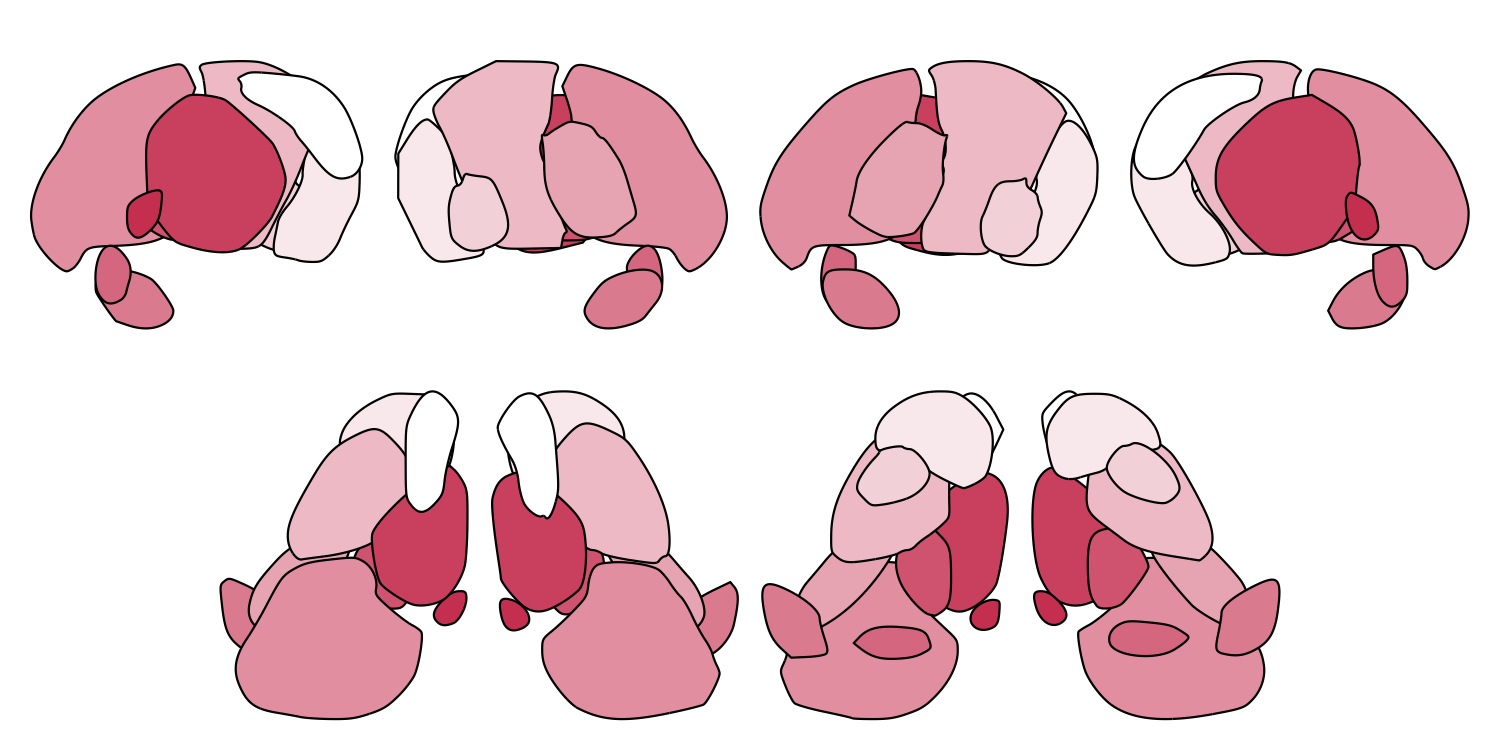

plot_subcortical_data(atlas = "Thalamus_THOMAS", cmap = THOMAS_cmap, hemisphere = 'both',
                      views = c('lateral', 'medial', 'superior', 'inferior'),
                      show_legend = FALSE, fill_title = "THOMAS thalamic nuclei")

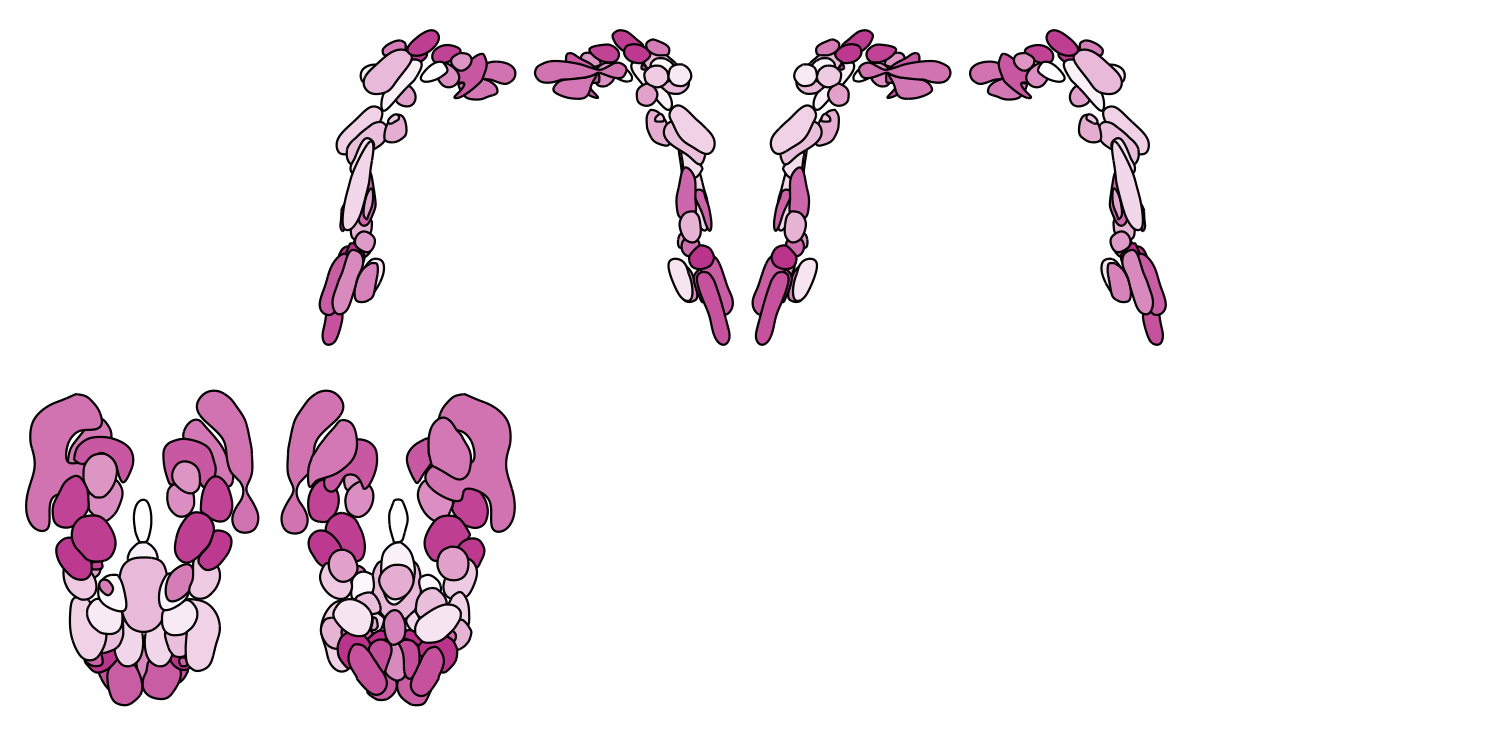

# B. Brainstem Navigator atlas
Brainstem_cmap <- colorRampPalette(c("white", "#c8499b"))
plot_subcortical_data(atlas = "Brainstem_Navigator", cmap = Brainstem_cmap, hemisphere = 'both',
                      views = c('lateral', 'medial', 'superior', 'inferior'),
                      show_legend = FALSE, fill_title = "Brainstem Navigator")

3. Controlling transparency

Global alpha with fill_alpha

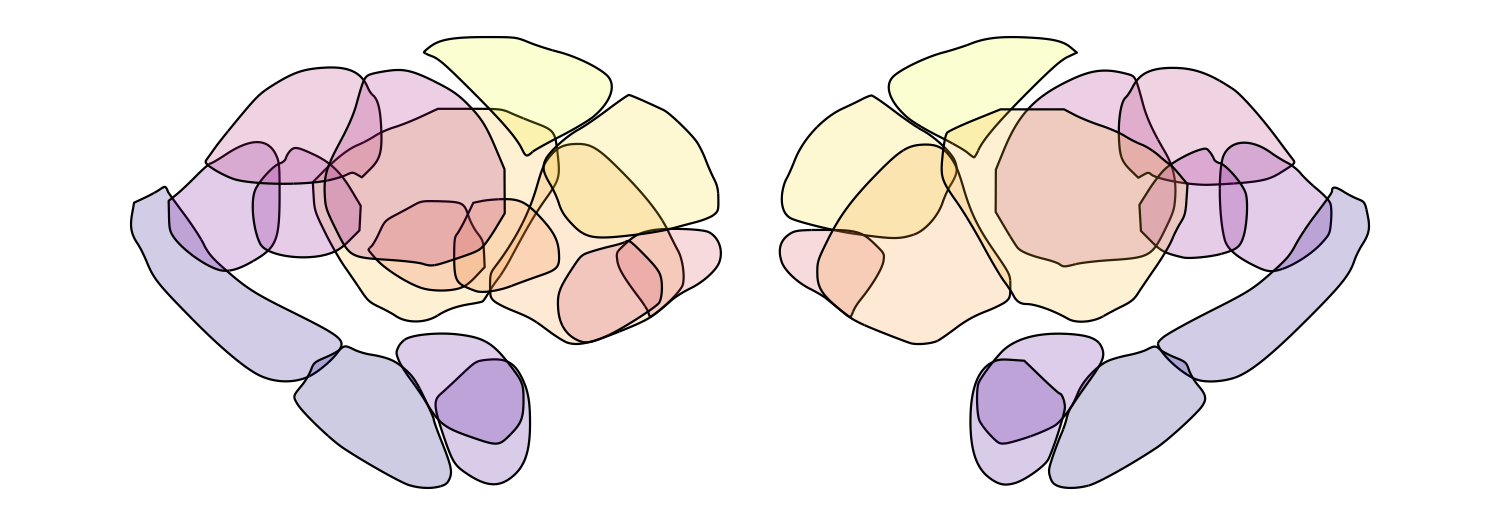

The fill_alpha argument controls the overall opacity of all regions (0 = fully transparent, 1 = fully opaque). This is particularly useful for atlases with many overlapping nuclei, where reducing transparency helps resolve individual regions. Here we loop through five alpha values for the Melbourne Subcortex S2 atlas:

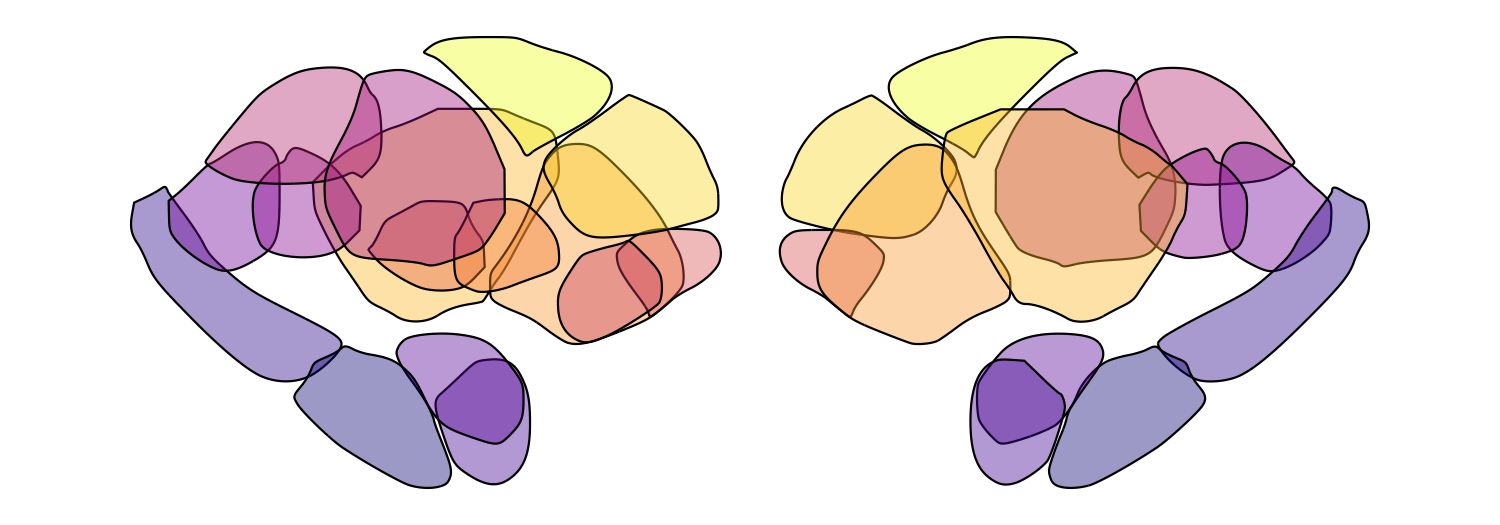

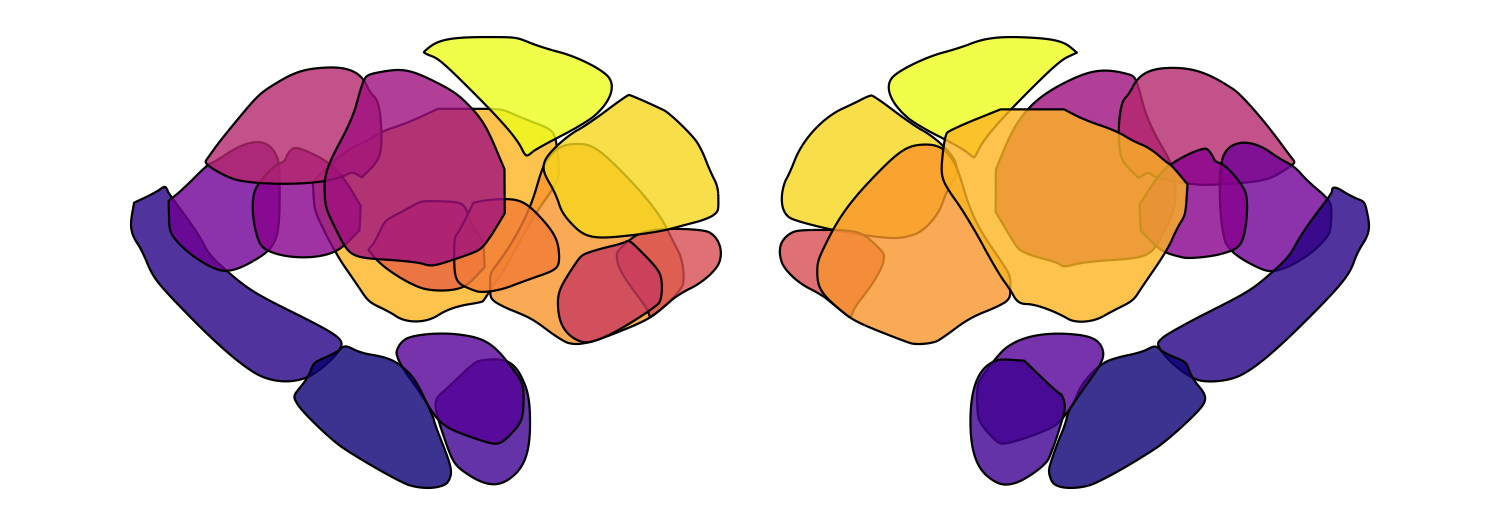

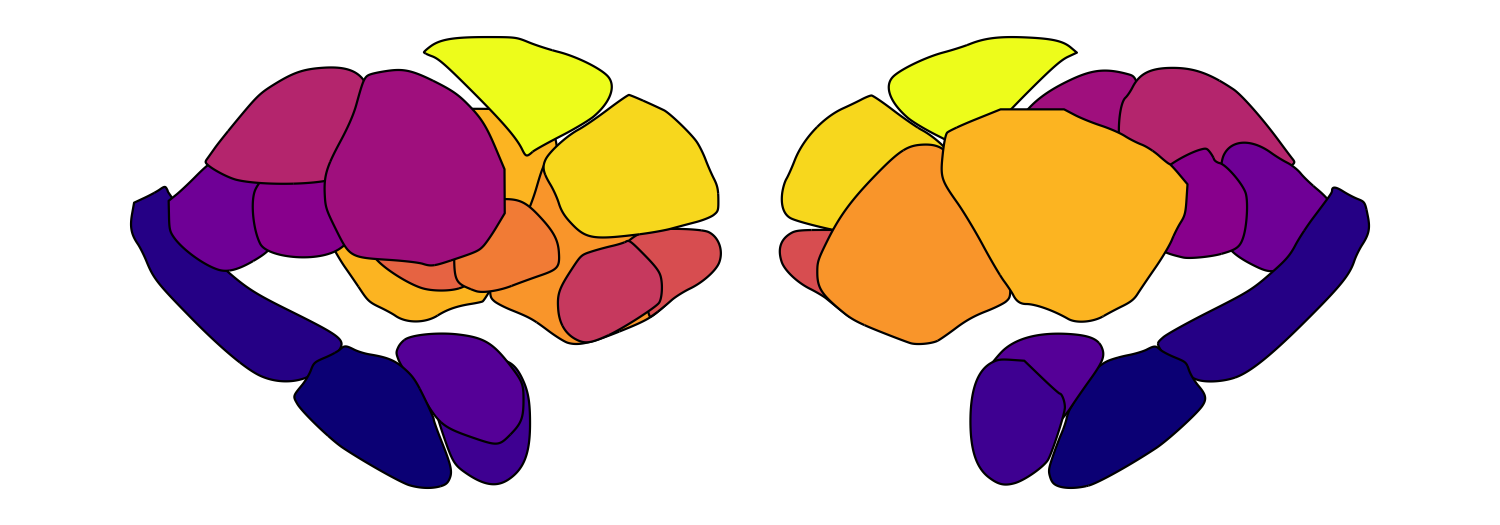

for (fill_alpha in seq(0.2, 1, by = 0.2)) {
    this_alpha_plot <- plot_subcortical_data(atlas = 'Melbourne_S2', fill_alpha = fill_alpha,
                                             cmap = 'plasma', show_legend = FALSE)
    print(this_alpha_plot)
}

Significance-based transparency

plot_subcortical_data also supports significance-based transparency through fill_by_significance = TRUE. When enabled:

  • Regions with p_value < 0.05 are rendered at fill_alpha (default 1.0) with full-weight borders
  • Regions with p_value >= 0.05 are rendered at nonsig_fill_alpha (default 0.5) with borders at 0.25 × line_thickness

This requires a p_value column in your subcortex_data data frame (an error will be thrown if it’s missing). Here we simulate data for the SUIT cerebellar lobule atlas and flag the four regions with the largest absolute effect size as significant:

set.seed(128) # Note: R and Python have different random number generators, so results won't be identical

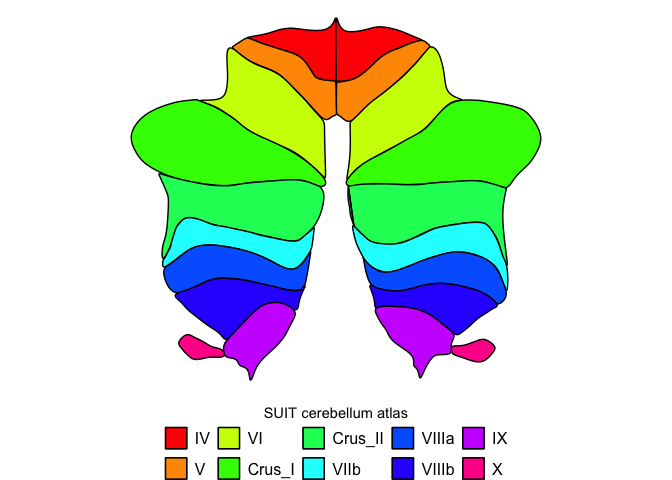

this_atlas <- 'SUIT_cerebellar_lobule'
this_atlas_regions <- get_atlas_regions(this_atlas)
this_atlas_hemisphere_regions <- this_atlas_regions$hemisphere_regions
this_atlas_vermis_regions <- this_atlas_regions$vermis_regions

# Simulate continuous data for plotting
this_atlas_simdata <- data.frame(
    region = c(this_atlas_hemisphere_regions, this_atlas_hemisphere_regions, this_atlas_vermis_regions),
    Hemisphere = c(rep('L', length(this_atlas_hemisphere_regions)),
                   rep('R', length(this_atlas_hemisphere_regions)),
                   rep('V', length(this_atlas_vermis_regions))))
this_atlas_simdata$value <- rnorm(nrow(this_atlas_simdata), mean = 0, sd = 1)
this_atlas_simdata$p_value <- runif(nrow(this_atlas_simdata), min = 0.05, max = 1.0)

# Set the four largest-magnitude values to be significant (p < 0.05)
largest_indices <- order(abs(this_atlas_simdata$value), decreasing = TRUE)[1:4]
this_atlas_simdata$p_value[largest_indices] <- 0.01

# PiYG-inspired colormap
PiYG_cmap <- colorRampPalette(c("#C51B7D", "#E9A3C9", "#FDE0EF", "#F7F7F7",
                                 "#E6F5D0", "#A1D76A", "#4D9221"))

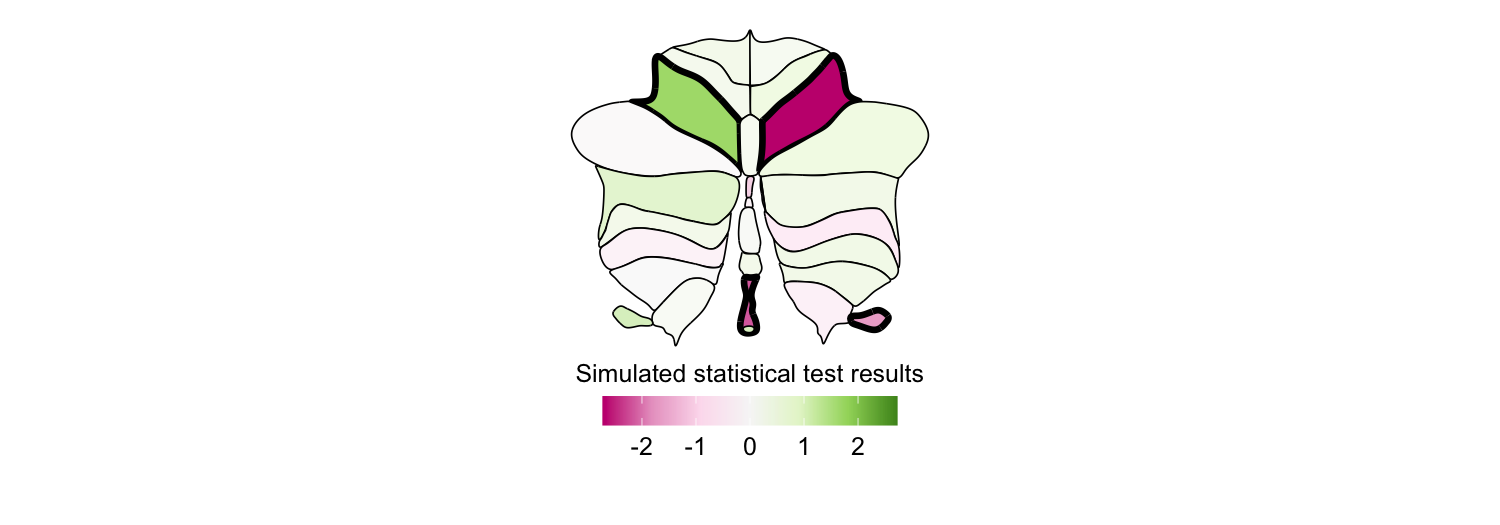

plot_subcortical_data(atlas = this_atlas, subcortex_data = this_atlas_simdata, hemisphere = 'both',
                      midpoint = 0, cmap = PiYG_cmap, show_legend = TRUE, line_thickness = 1.5,
                      fill_title = "Simulated statistical test results",
                      fill_alpha = 1.0, fill_by_significance = TRUE, nonsig_fill_alpha = 0.5)

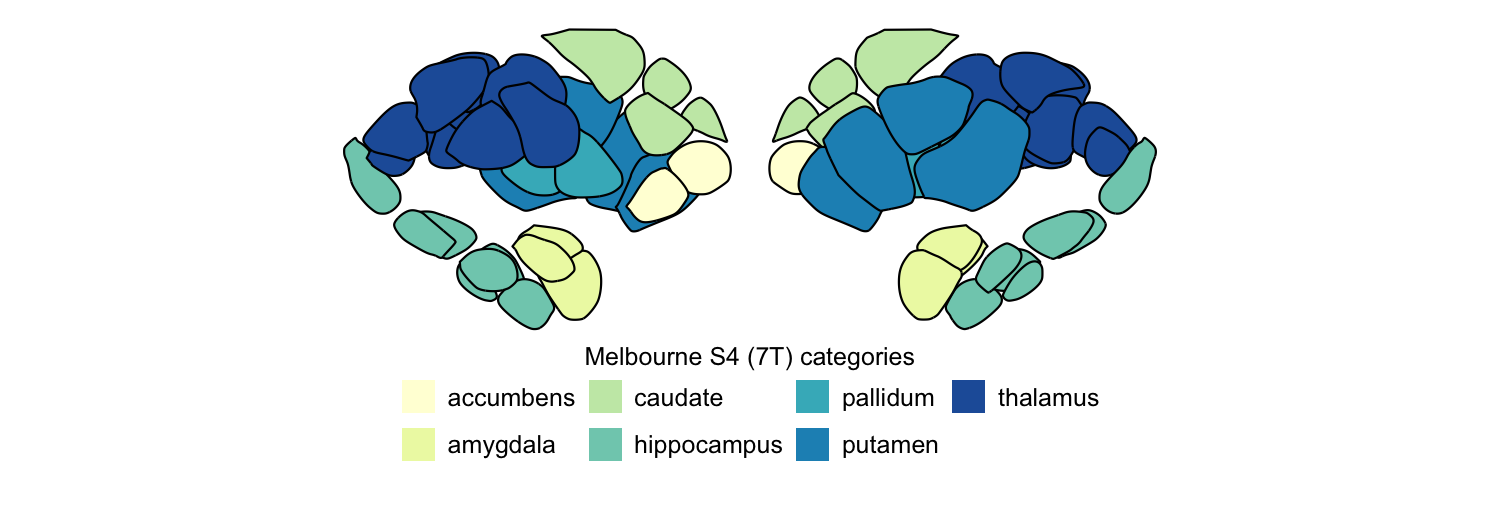

4. Working with your own data

The key requirement for visualizing empirical data with plot_subcortical_data is that your region names exactly match those defined in the atlas (including capitalization and spacing). Use get_atlas_regions to check the exact names for any atlas:

# Most atlases return a character vector of region names
aseg_regions <- get_atlas_regions('aseg_subcortex')
cat('aseg_subcortex regions:', paste(aseg_regions, collapse = ', '), '\n')

## aseg_subcortex regions: thalamus, caudate, putamen, pallidum, hippocampus, amygdala, accumbens

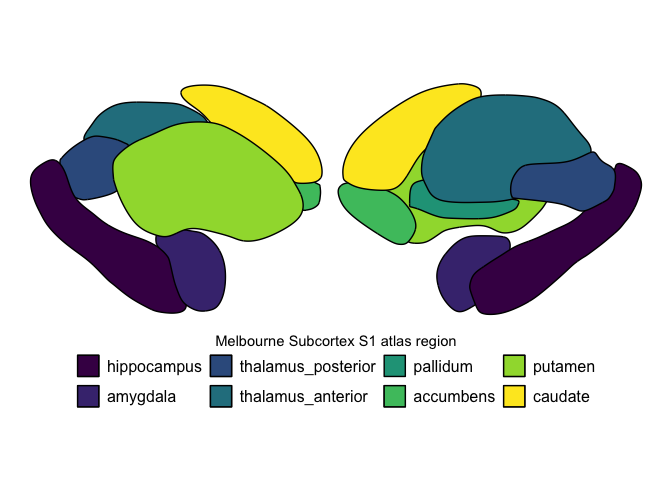

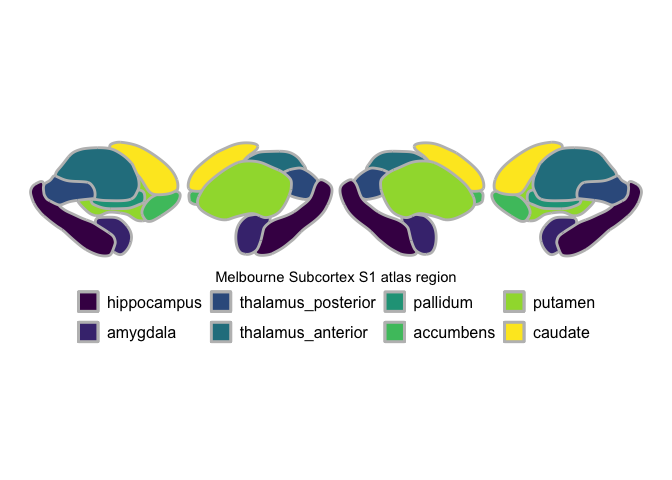

# >>> get_atlas_regions('Melbourne_S1')
# [1] "hippocampus"        "amygdala"           "thalamus_posterior"
# [4] "thalamus_anterior"  "pallidum"           "accumbens"
# [7] "putamen"            "caudate"

# SUIT_cerebellar_lobule and Brainstem_Navigator return a named list
suit_regions <- get_atlas_regions('SUIT_cerebellar_lobule')
cat('SUIT hemisphere regions:', paste(suit_regions$hemisphere_regions, collapse = ', '), '\n')

## SUIT hemisphere regions: IV, V, VI, Crus_I, Crus_II, VIIb, VIIIa, VIIIb, IX, X

cat('SUIT vermis regions:', paste(suit_regions$vermis_regions, collapse = ', '), '\n')

## SUIT vermis regions: VI, Crus_II, VIIb, VIIIa, VIIIb, IX, X

brainstem_regions <- get_atlas_regions('Brainstem_Navigator')
cat('Brainstem hemisphere regions:', paste(brainstem_regions$hemisphere_regions, collapse = ', '), '\n')

## Brainstem hemisphere regions: CnF, IC, ION, LC, LDTg_CGPn, LPB, MiTg_PBG, MPB, PCRtA, PnO_PnC, PTg, RN1, RN2, SC, SN1, SN2, SOC, SubC, Ve, VSM, VTA_PBP, iMRtl, iMRtm, isRt, mRta, mRtd, mRtl, sMRtl, sMRtm

cat('Brainstem midline regions:', paste(brainstem_regions$midline_regions, collapse = ', '), '\n')

## Brainstem midline regions: CLi_RLi, DR, MnR, PAG, PMnR, RMg, ROb, RPa

Region names for each atlas are also listed on the package website.

Plotting continuous data

The subcortex_data data frame needs three columns:

  • region: Region names matching the atlas exactly
  • value: Numeric values to color-map
  • Hemisphere: 'L', 'R', 'V' (vermis, for cerebellum), or 'B' (bilateral/midline regions)

Let’s simulate random continuous data for the aseg subcortex atlas to demonstrate this:

set.seed(127) # Set random seed for reproducibility

# Get region names for the aseg subcortex atlas
aseg_subcortex_regions <- get_atlas_regions("aseg_subcortex")

# Sample random values from a normal distribution for each hemisphere
example_continuous_data_L <- data.frame(region = aseg_subcortex_regions,
                                        value = rnorm(length(aseg_subcortex_regions), mean = 0, sd = 1),
                                        Hemisphere = "L")
example_continuous_data_R <- data.frame(region = aseg_subcortex_regions,
                                        value = rnorm(length(aseg_subcortex_regions), mean = 0, sd = 1),
                                        Hemisphere = "R")

# Combine left and right hemisphere data for bilateral plotting
example_continuous_data <- rbind(example_continuous_data_L, example_continuous_data_R)
example_continuous_data

##         region        value Hemisphere
## 1     thalamus -0.567733740          L
## 2      caudate -0.814760579          L
## 3      putamen -0.493939596          L
## 4     pallidum  0.001818846          L
## 5  hippocampus  0.819784933          L
## 6     amygdala  0.996757858          L
## 7    accumbens  0.751782219          L
## 8     thalamus -0.125547223          R
## 9      caudate  0.564619888          R
## 10     putamen  0.133508557          R
## 11    pallidum -0.105963209          R
## 12 hippocampus  0.605929618          R
## 13    amygdala  0.013250975          R
## 14   accumbens -0.278788699          R

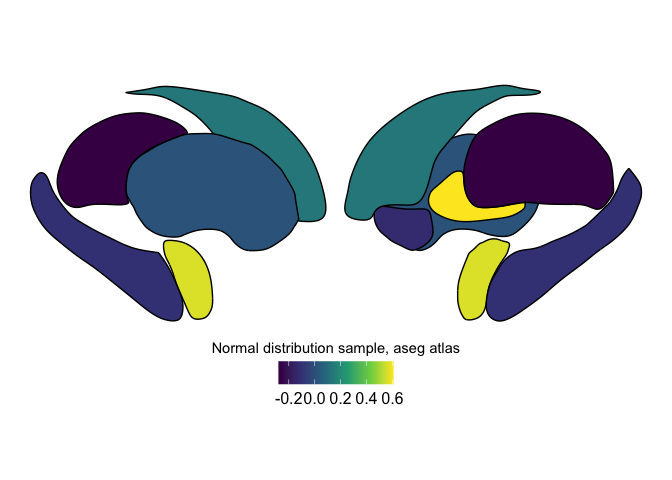

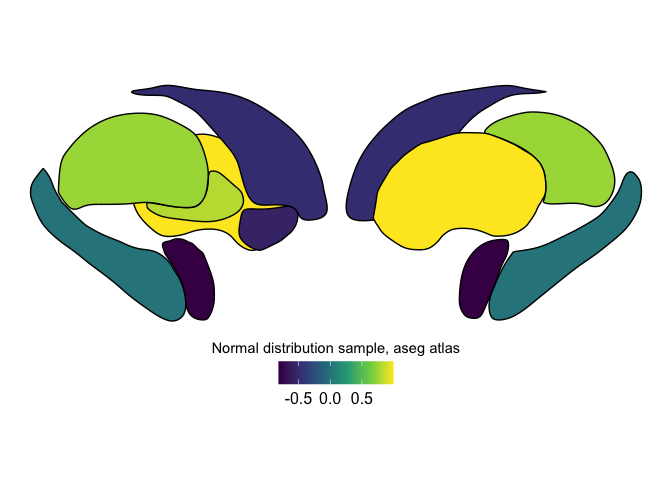

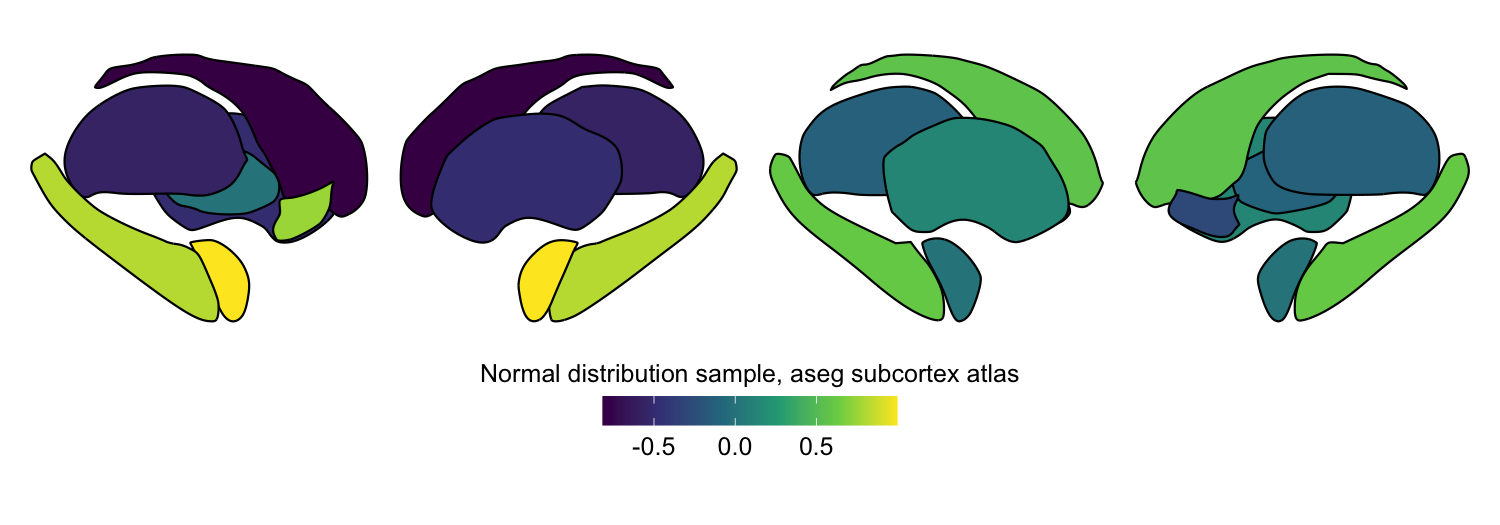

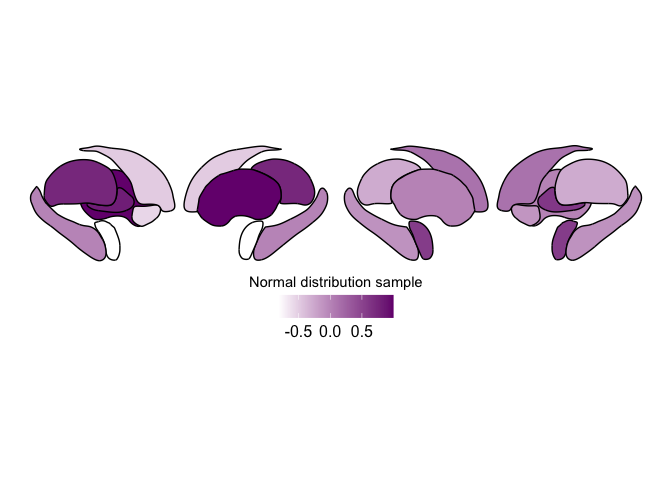

plot_subcortical_data(subcortex_data = example_continuous_data,
                      atlas = 'aseg_subcortex', hemisphere = 'both', cmap = 'viridis',
                      fill_title = "Normal distribution sample, aseg subcortex atlas")

Custom colormaps and the midpoint argument

You can pass any colormap (or create a custom one with colorRampPalette) to the cmap argument. Since this simulated data spans negative and positive values, a diverging blue-white-red colormap is a natural choice.

The midpoint argument specifies the center value of the color scale. Setting this to 0 maps the center color to 0, with symmetric bounds determined automatically from the data range (unless you also set vmin and vmax explicitly). Without explicitly setting vmin/vmax, the color range will be defined symmetrically around midpoint to capture the full range of the data.

# Create a blue-white-red colormap
white_blue_red_cmap <- colorRampPalette(c("blue", "white", "red"))

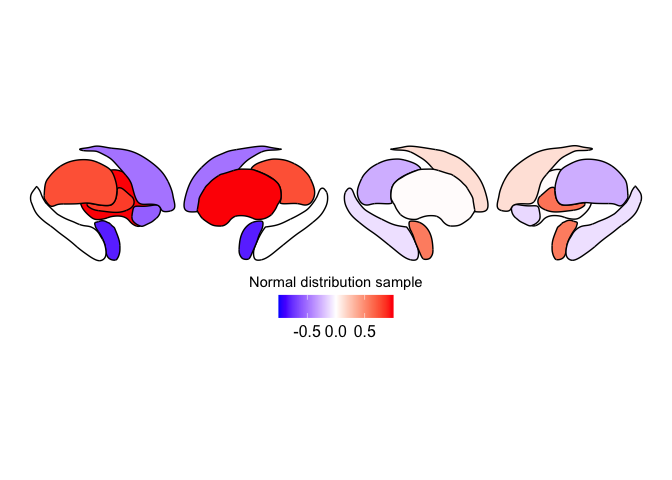

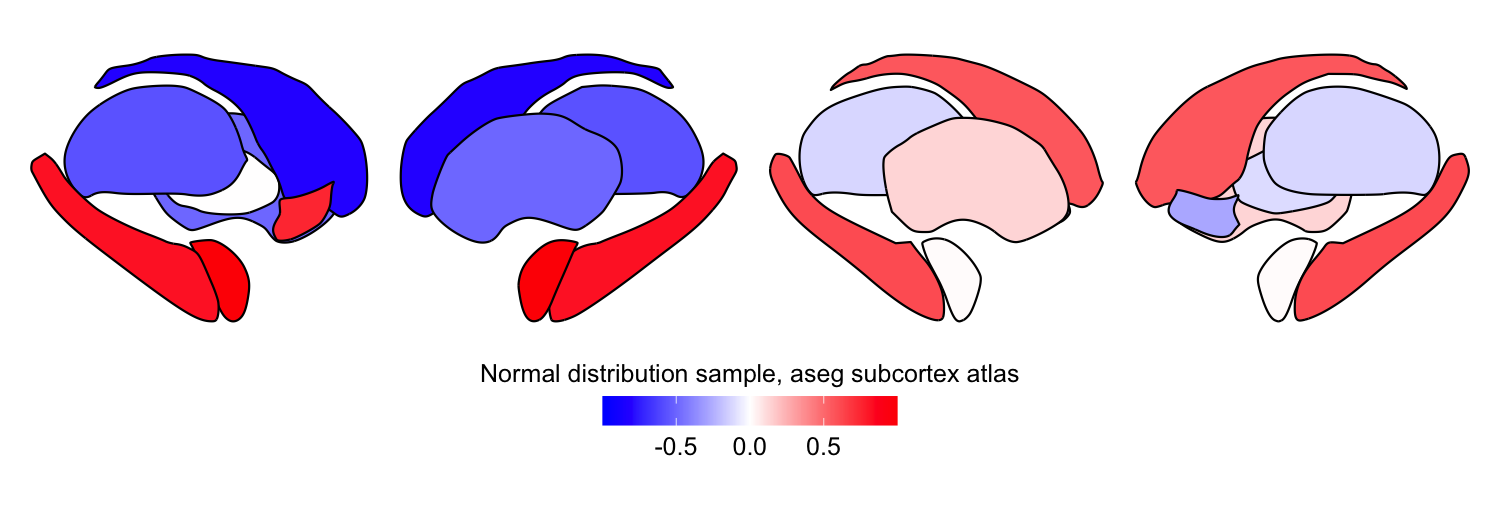

plot_subcortical_data(subcortex_data = example_continuous_data,
                      atlas = 'aseg_subcortex', hemisphere = 'both',
                      fill_title = "Normal distribution sample, aseg subcortex atlas",
                      cmap = white_blue_red_cmap, midpoint = 0)

5. Extracting regional statistics from volumetric data

In many cases, you may have a three-dimensional volumetric image (from any imaging modality) and want to reduce it down to region-level summary statistics before plotting. The parcel_segstats function handles this: it takes a NIfTI image and an atlas name and computes a user-specified summary statistic for all voxels in each region.

For the parc_stat argument, you can pass any function that takes an array of values and returns a single scalar — mean, sd, median, max, etc.

The output data frame is pre-formatted for direct use with plot_subcortical_data (no reformatting needed).

Atlas space compatibility

The atlases are provided in two MNI spaces: MNI152NLin6Asym (default) and MNI152NLin2009cAsym. Your input volume must be in one of these two spaces to use our package to compute region-aggregated statistics in one or more of the included atlases. If the affine or spatial dimensions don’t match, parcel_segstats will raise an error by default. You can specify an interpolation method ('nearest', 'linear', or 'cubic') to resample the atlas to your input volume, though we encourage you to take care with atlas alignment and, wherever possible, normalize your data to the correct MNI space rather than relying on interpolation.

Here we compute the median CB1 receptor density per region in the aseg subcortex atlas from a group-averaged PET map:

# Define file paths for download
CB1_density_URL = "https://github.com/netneurolab/hansen_receptorvar/blob/main/data/PET_volumes/CB1_fmpepVt2_hc20_nummenmaa_mean.nii.gz?raw=true"
download.file(url = CB1_density_URL, destfile = "CB1_mean.nii.gz", mode = "wb", quiet=TRUE)
functional_map_path <- "CB1_mean.nii.gz"

atlas_name <- "aseg_subcortex"
func_name <- "CB1_density"

# The PET maps are shared in MNI152NLin6Asym space, so we specify
# this space for the atlas to ensure proper alignment
atlas_space <- 'MNI152NLin6Asym'

# Apply the aseg subcortex atlas to extract the median value per region,
# specifying interpolation = 'nearest' to preserve discrete labels in the atlas
this_func_atlas_data <- parcel_segstats(input_vol = functional_map_path,
                                        atlas_space = atlas_space,
                                        atlas = atlas_name,
                                        func_name = func_name,
                                        parc_stat = median,
                                        interpolation = 'nearest')

# Custom color map
custom_cmap <- colorRampPalette(c("white", "#00405c"))

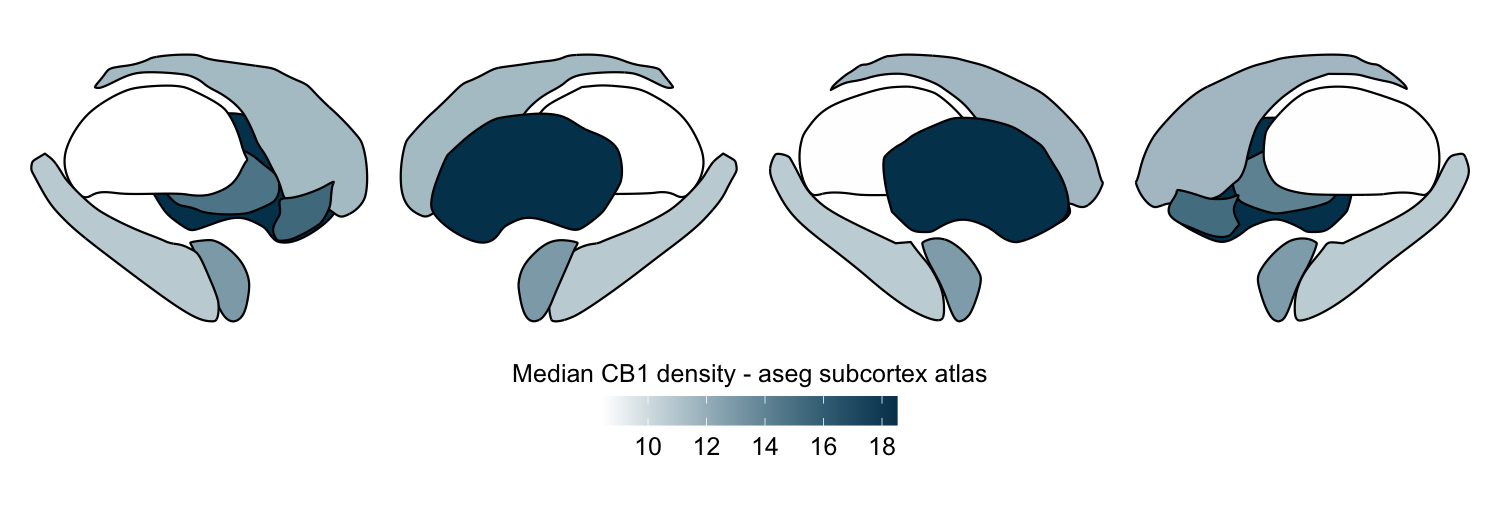

plot_subcortical_data(subcortex_data = this_func_atlas_data,
                      atlas = atlas_name, value_column = 'value',
                      fill_title = 'Median CB1 density - aseg subcortex atlas',
                      hemisphere = 'both', show_legend = TRUE, cmap = custom_cmap)


# Clean up downloaded file
file.remove("CB1_mean.nii.gz")

## [1] TRUE

Applying multiple atlases simultaneously

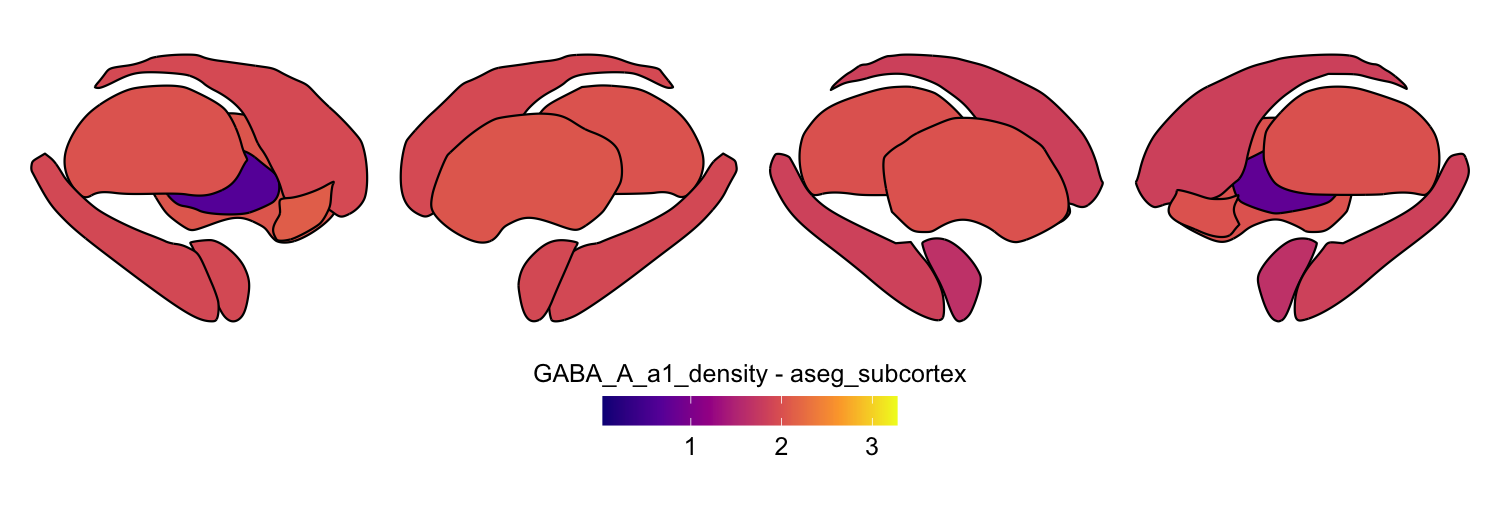

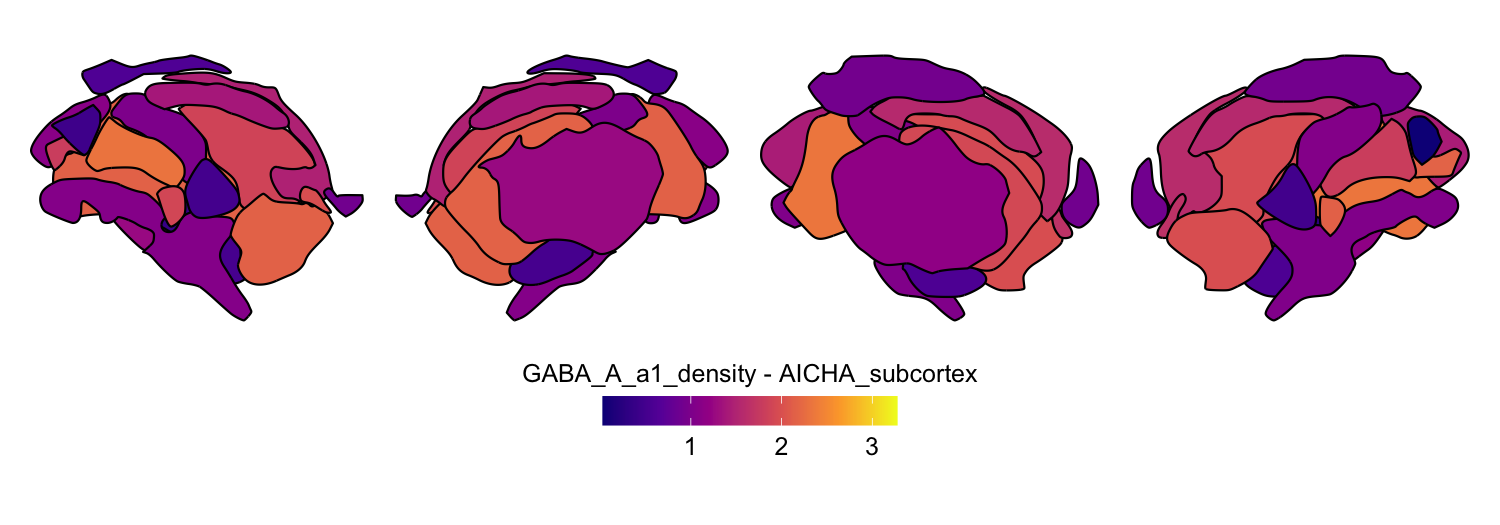

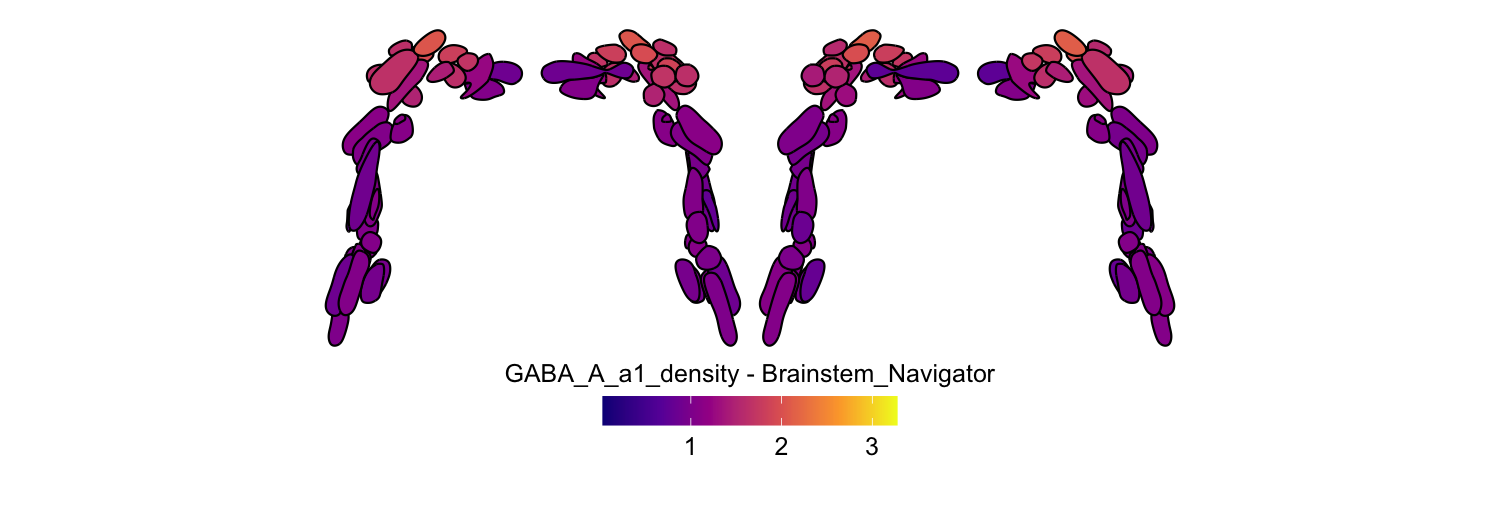

parcel_segstats accepts a vector of atlas names, running the parcellation for each and concatenating results into one data frame with an Atlas column. This makes it straightforward to compare how regional patterns differ across parcellation schemes.

As long as your empirical volume is in one of the two supported MNI spaces, you can flexibly mix any combination of atlases and summary statistics in a single function call.

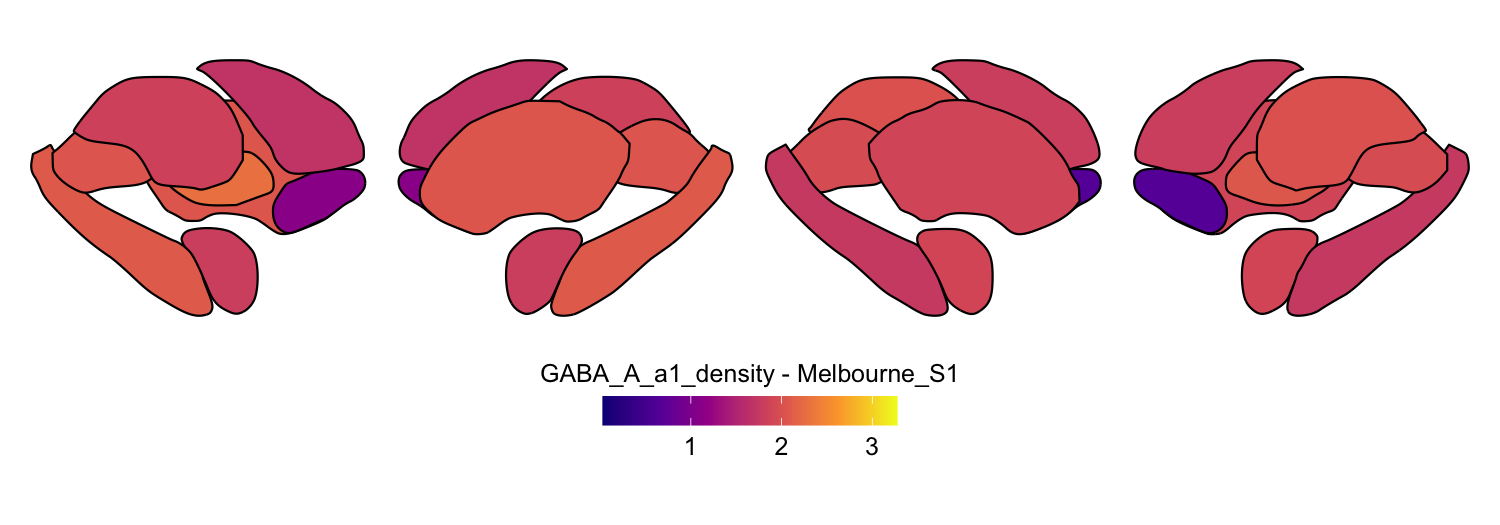

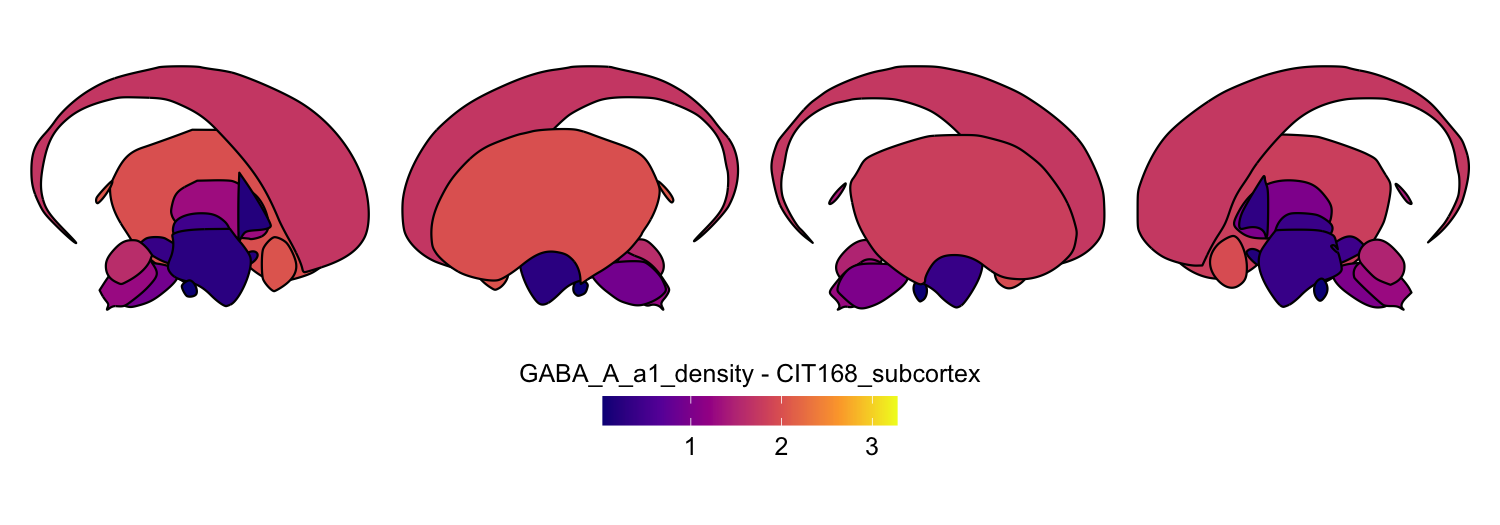

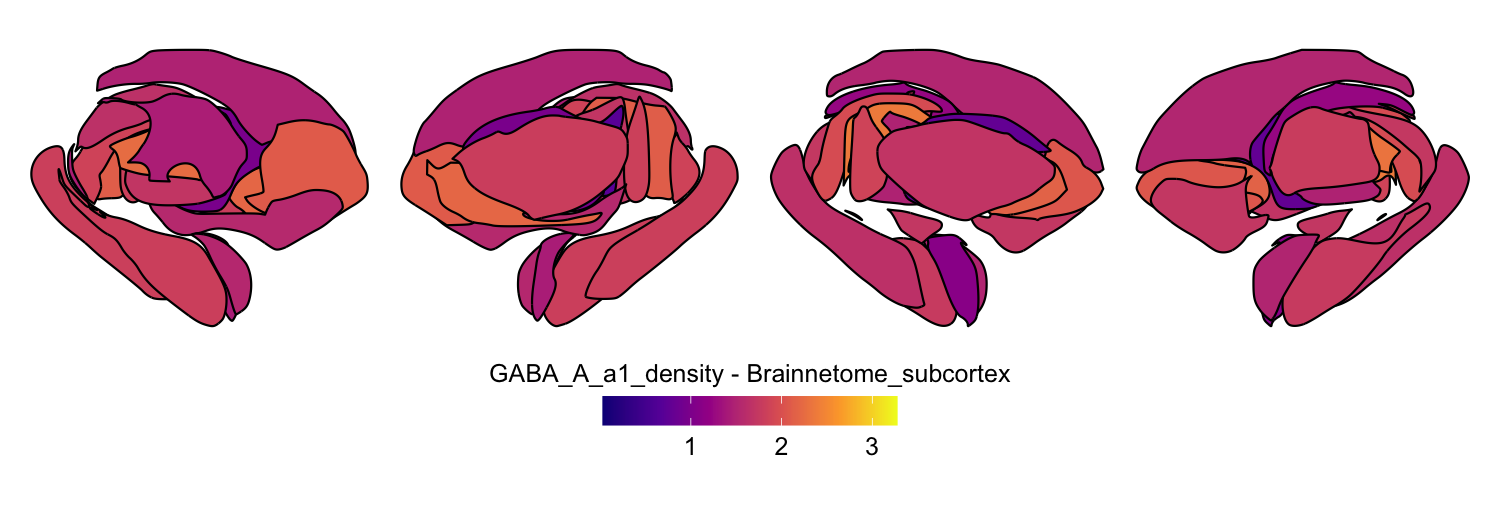

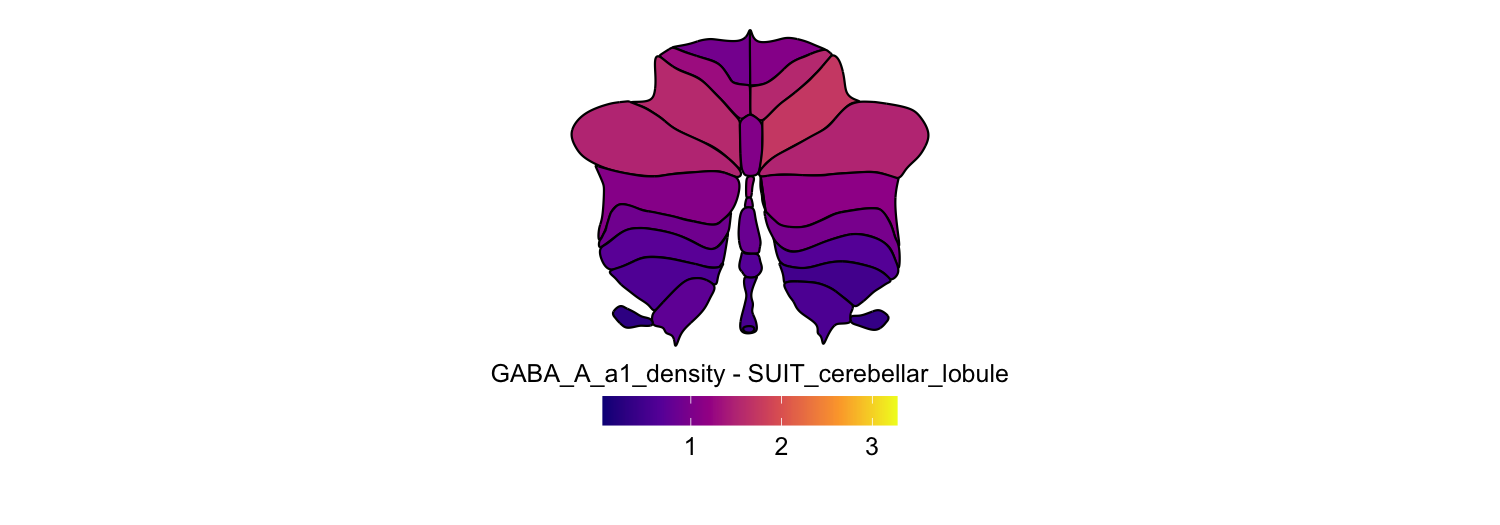

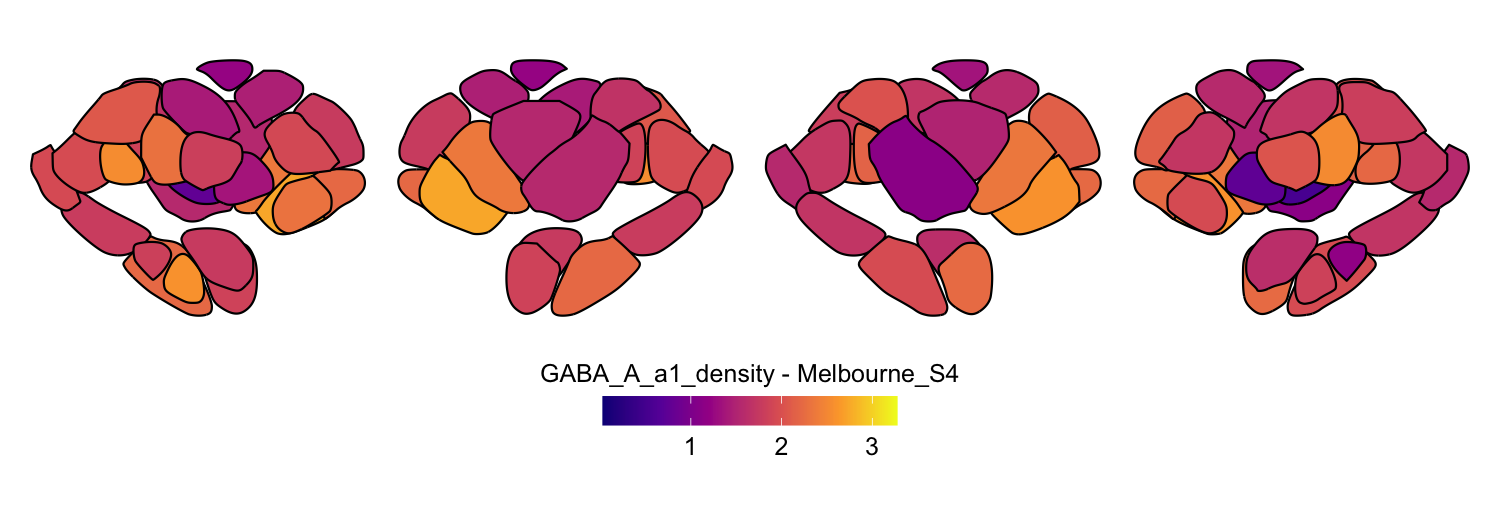

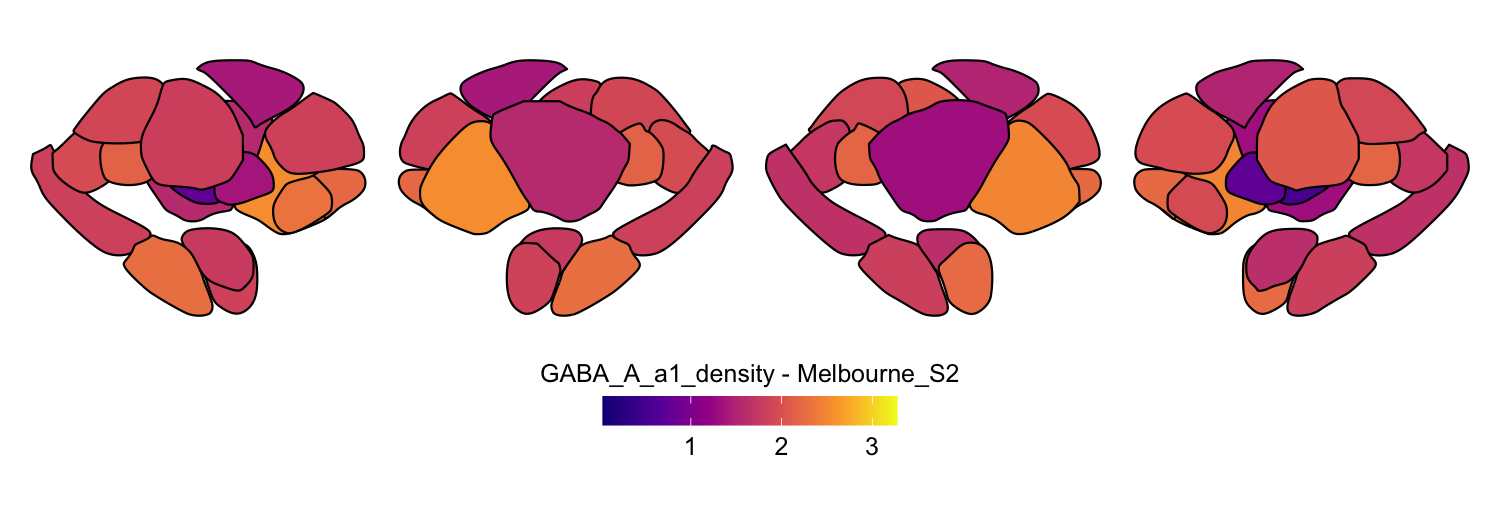

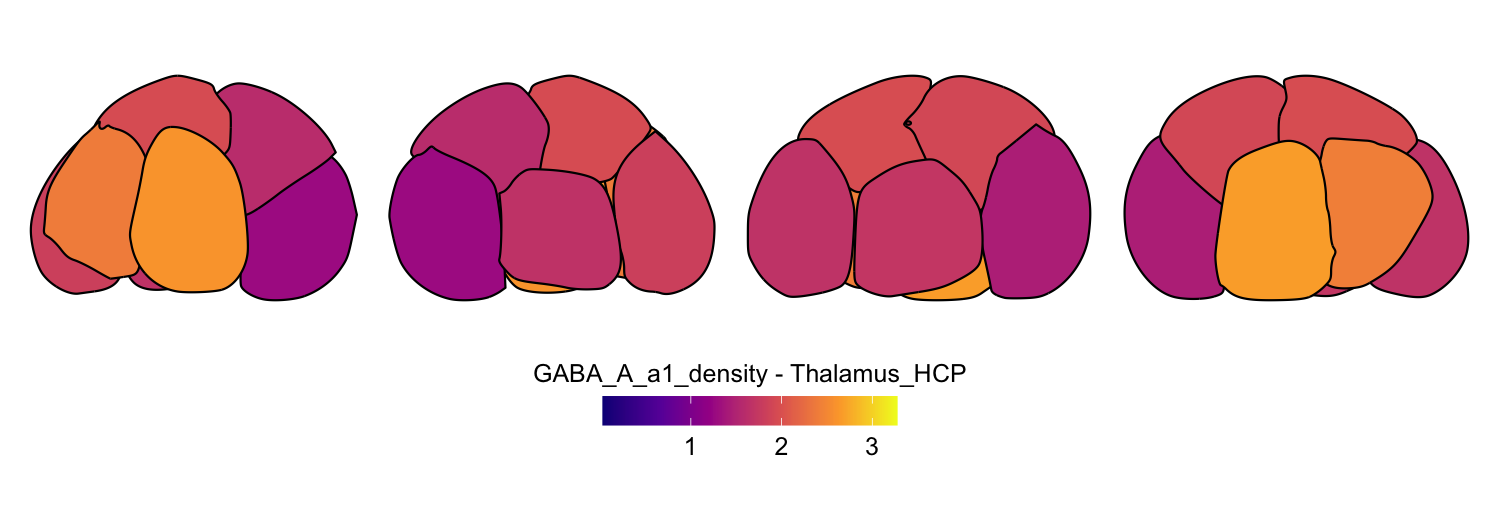

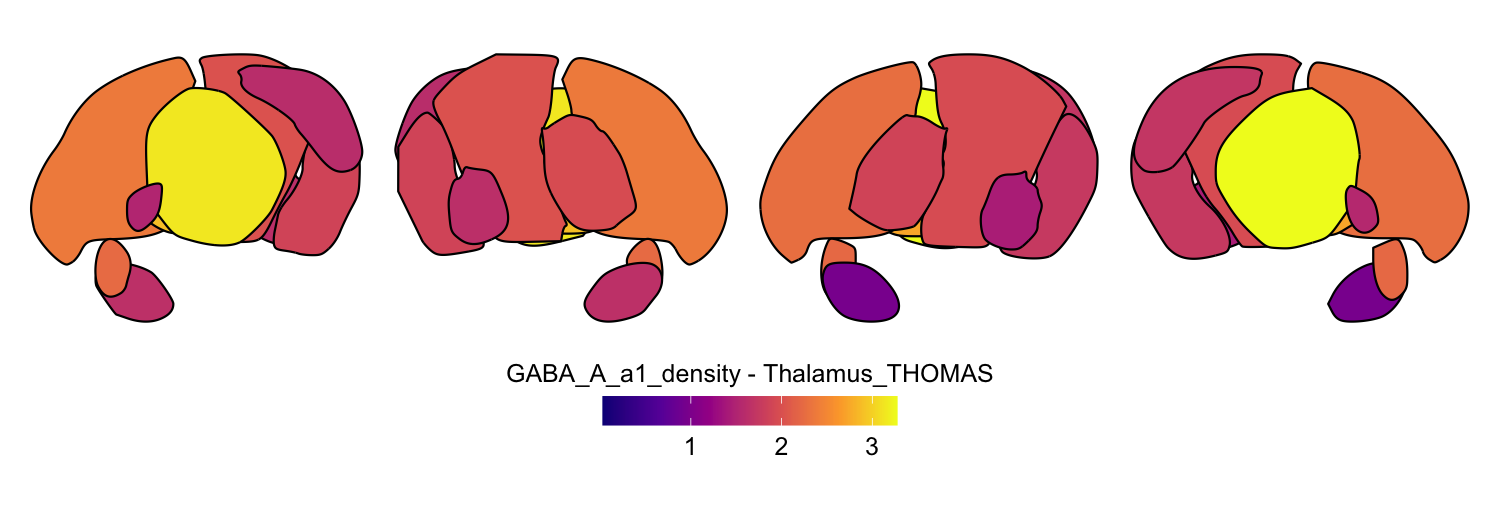

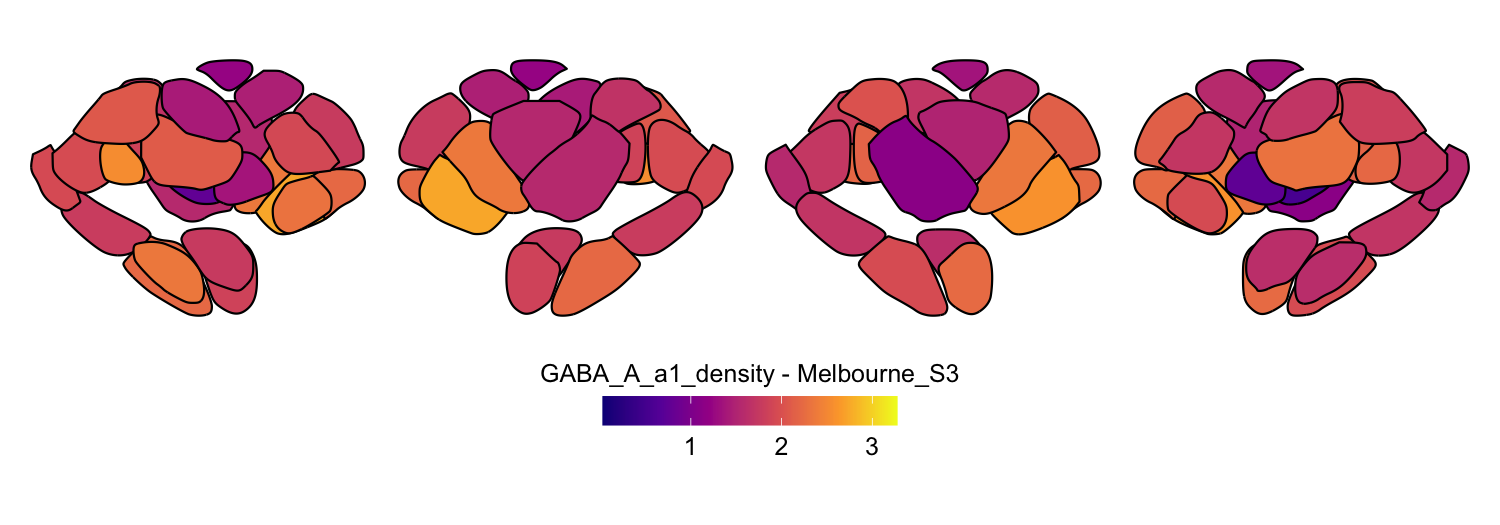

Here we compute the mean GABAA-α1 receptor subunit density across all twelve atlases included in the package:

# Define subcortical atlases
all_atlases <- c('aseg_subcortex', 'Melbourne_S1', 'Melbourne_S2',
                 'Melbourne_S3', 'Melbourne_S4', 'AICHA_subcortex',
                 'Brainnetome_subcortex', 'CIT168_subcortex', 'Thalamus_HCP',
                 'Thalamus_THOMAS', 'Brainstem_Navigator', 'SUIT_cerebellar_lobule')

# Define file path for download
GABAa1_density_URL <- "https://github.com/netneurolab/hansen_receptorvar/blob/main/data/PET_volumes/GABAa1_ro154513_hc23_chang_mean.nii.gz?raw=true"
download.file(url = GABAa1_density_URL, destfile = "GABAa1_mean.nii.gz", mode = "wb", quiet=TRUE)
functional_map_path <- "GABAa1_mean.nii.gz"

atlas_space <- 'MNI152NLin6Asym'
func_name <- "GABA_A_a1_density"

# Extract mean values for all atlases from the GABA_A_a1 density map
# Use nearest neighbor interpolation to preserve discrete labels in the atlas
func_map_subcortical_parc_df <- parcel_segstats(input_vol = functional_map_path,
                                                atlas = all_atlases,
                                                atlas_space = atlas_space,
                                                parc_stat = mean,
                                                ignore_background = TRUE,
                                                func_name = func_name,
                                                interpolation = 'nearest')

min_func_parc_value <- min(func_map_subcortical_parc_df$value)
max_func_parc_value <- max(func_map_subcortical_parc_df$value)

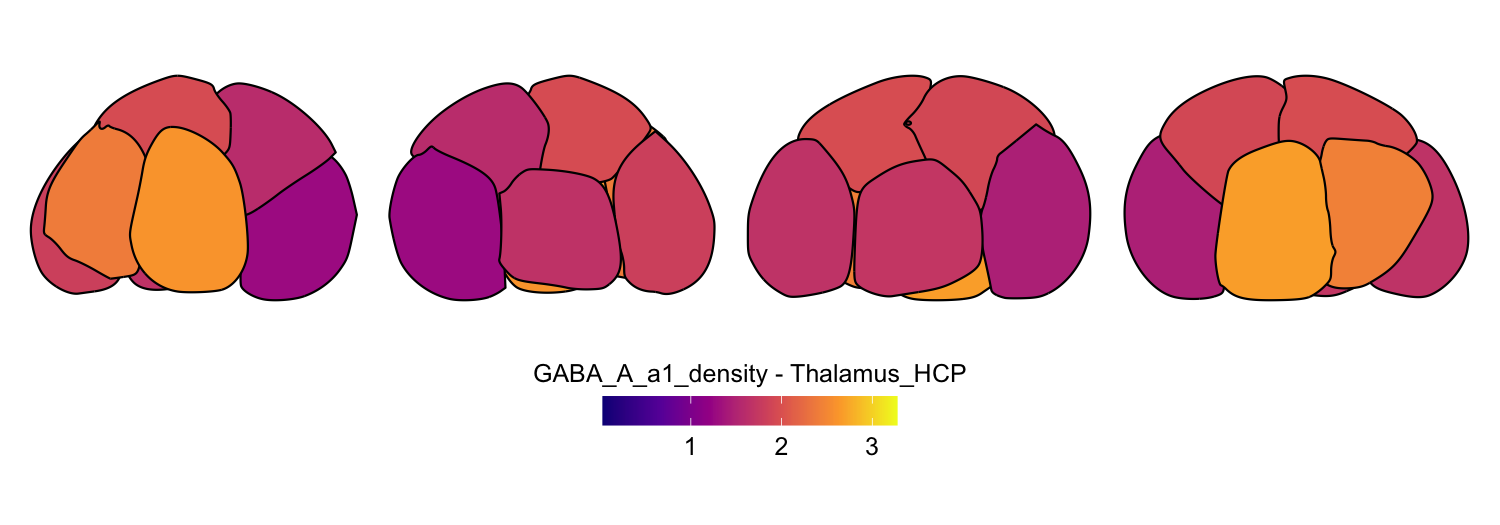

# Plot each atlas with a consistent color scale
for (atlas in all_atlases) {
    this_atlas_data <- subset(func_map_subcortical_parc_df, Atlas == atlas)
    this_fill_title <- paste(func_name, "-", atlas, sep = " ")
    this_atlas_plot <- plot_subcortical_data(
        subcortex_data = this_atlas_data,
        atlas = atlas,
        value_column = 'value',
        fill_title = this_fill_title,
        hemisphere = 'both',
        vmin = min_func_parc_value,
        vmax = max_func_parc_value,
        cmap = 'plasma',
        show_legend = TRUE
    )
    print(this_atlas_plot)
}

6. Combining cortical and subcortical visualizations

Since subcortexVisualizationR produces ggplot2 objects, it is straightforward to combine subcortical and cerebellar plots with cortical surface plots from ggseg using the patchwork package, all within the ggplot2 framework. This allows for direct comparison of receptor density across cortical and non-cortical structures with a unified color scale.

Python package users can save outputs from plot_subcortical_data in their preferred file format (e.g., .png or .svg) and combine with saved ggseg output from R in the image editor of their choice.

As a fully R-based example, we visualize the regional average GABAA-α1 receptor subunit density from the previous example in the cortex alongside the subcortex and cerebellum together. We selected the 1000-parcel Schaefer atlas to parcellate the cerebral cortex, the Melbourne Subcortex S4 atlas for subcortex, and the SUIT cerebellar lobule atlas for cerebellum. Note that the color range is consistent across all three plots, allowing for direct comparison of receptor subunit density across the cortical and non-cortical structures.

Note: The below code chunk does not compute/visualize the real cortical values for the Schaefer-1000 cortical atlas, as this is beyond the scope of our package and is designed to be performed in Python using neuromaps.

library(ggseg)
library(ggsegSchaefer)
library(patchwork)
library(tidyverse)

# Use subcortical parcellation results from the previous code chunk
# (func_map_subcortical_parc_df, min_func_parc_value, max_func_parc_value)

# Cortical plot with ggseg
# Get Schaefer 1000-parcel atlas labels, then join with parcellated GABA_A_a1 data
# In practice, cortical parcellation would be done with neuromaps (Python) or
# a surface-based parcellation tool; here we simulate cortical values for illustration
schaefer1000_labels <- schaefer17_1000()$data$sf %>%
    as_tibble() %>%
    filter(!is.na(label)) %>%
    select(label, hemi) %>%
    distinct()

set.seed(42)
cortical_sim_data <- schaefer1000_labels %>%
    mutate(value = runif(n(),
                         min = min_func_parc_value,
                         max = max_func_parc_value))

cortex_p <- cortical_sim_data %>%
    ggplot() +
    geom_brain(atlas = schaefer17_1000(), mapping = aes(fill = value),
               colour = "black", linewidth = 0.1) +
    ggtitle("Schaefer-1000 Cortex") +
    labs(fill = 'Mean GABAa1 Signal (VT)') +
    scale_fill_viridis_c(limits = c(min_func_parc_value, max_func_parc_value),
                         na.value = 'gray80', option = 'plasma') +
    theme_void() +
    guides(fill = guide_colorbar(barwidth = unit(5, "cm"),
                                  barheight = unit(0.5, "cm"),
                                  title.position = "top", title.hjust = 0.5)) +
    theme(legend.position = 'bottom', plot.title = element_text(hjust = 0.5))

# Melbourne S4 subcortex plot
subcortex_p <- plot_subcortical_data(
    subcortex_data = subset(func_map_subcortical_parc_df, Atlas == "Melbourne_S4"),
    atlas = "Melbourne_S4", hemisphere = "both",
    value_column = 'value', vmin = min_func_parc_value,
    vmax = max_func_parc_value, cmap = 'plasma', show_legend = FALSE) +
    ggtitle("Melbourne S4 Subcortex") +
    theme(plot.title = element_text(hjust = 0.5))

# SUIT cerebellum plot
cerebellum_p <- plot_subcortical_data(
    subcortex_data = subset(func_map_subcortical_parc_df, Atlas == "SUIT_cerebellar_lobule"),
    atlas = "SUIT_cerebellar_lobule", hemisphere = "both",
    value_column = 'value', vmin = min_func_parc_value,
    vmax = max_func_parc_value, cmap = 'plasma', show_legend = FALSE) +
    ggtitle("SUIT Cerebellum") +
    theme(plot.title = element_text(hjust = 0.5))

# Use patchwork to combine the plots; titles can be further adjusted in Inkscape
plot_design <- "AAA
                BBC"
wrap_plots(A = cortex_p, B = subcortex_p, C = cerebellum_p,
           design = plot_design, heights = c(0.6, 0.4))
